Screen Printer

SEMI-AUTO SCREEN PRINTER

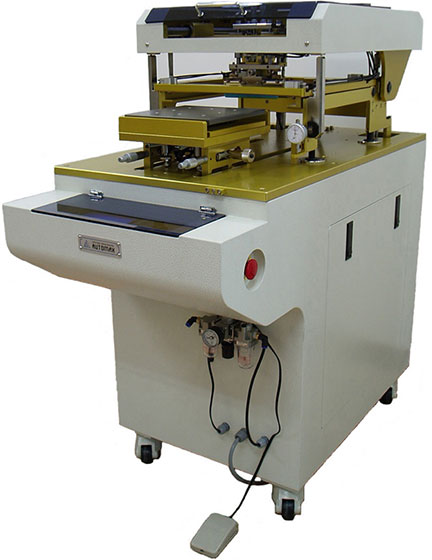

MODEL AMX-1242T


AMX-1242T


AUTOMAX SYSTEM ENGINEERING

* À§ »çÁøÀÇ À̹ÌÁö´Â º¯°æµÉ¼ö ÀÖ´Â ¸ðµ¨ÀÔ´Ï´Ù.

  • TEL : 032-671-1513
  • FAX : 032-671-1514

1. Ç°¸í

SEMI-AUTO SCREEN PRINTER
MODEL No. AMX-1242T

2. ¿ëµµ

°¢ Á¾ PASTE¸¦ Substrate¿¡ Á¤¹ÐÇÏ°Ô ÀμâÇÏ´Â Àåºñ·Î½á LTCC, MLCC, RF FILTER, SOLAR CELL, Touch Panel, LCD µîÀ» Á¦Á¶ÇÒ¼ö ÀÖ½À´Ï´Ù.

3. Ư¡

  • a. DATA ¼öÄ¡È­¿¡ ÀÇÇÑ °íÁ¤¹Ð Àμ⠽ÇÇö
    (¼¶¼¼ÇÑ ¼³°è, Á¤¹ÐÇÑ °¡°ø, µÎ³ú¸¦ °®´Â SOFTWARE ¿¡ ÀÇÇÑ °íÁ¤¹Ð Àμâ½ÇÇö)
  • b. DOUBLE - PRINTING ±â´É
  • c. TOUCH SCREEN PANEL
  • d. SQUEEGE SPEED ÀÇ Çâ»ó¼º
    (À¯¾Ð ¹× °ø¾Ð¹æ½ÄÀÌ °®´Â SPEED º¯È­ÀÇ ¹®Á¦Á¡À» STEPPING MOTOR DRIVING ¹æ½ÄÀ» äÅÃÇÔÀ¸·Î½á Àμ⠵β²ÀÇ ±ÕÀϼºÀ» °¡Áü)
  • e. SQUEEGEE ¾Ð·Â ·¹±Ö·¹ÀÌÅÍ ÀåÂø ( 2~ 6kg adjustable)
  • f. ½±°í °£´ÜÇϸç, ½Å¼ÓÇÑ OPERATION
    (ÀÏüÀÇ °ø±¸°¡ ÇÊ¿äÄ¡ ¾ÊÀº Áß¾ÓÁýÁᫎ ÀüÀÚÁ¦¾î¹æ½Ä äÅÃ)
  • g. AIR CYLINDER ¿¡ ÀÇÇÑ ONE-TOUCH ¹æ½ÄÀ¸·Î SCREEN FRAME ÀåÂø¹× Å»ÂøÀ» ÇÕ´Ï´Ù.
  • h. SNAP - OFF (SCREEN GAP) Á¶Á¤Àº AC MOTOR DRIVING ¹æ½ÄÀ» äÅÃÇÏ¿©, SWITCH ÀÇ UP - DOWN À¸·Î Á¶ÀýÇÕ´Ï´Ù.
  • i. COMPACTÇÑ DESIGN ¹× Àú¼ÒÀ½ ¼³°è¿¡ ÀÇÇÑ ÀÛ¾÷ȯ°æÀÇ °³¼±
  • j. POROUS PLATE (OPTION)
  • k. LOCATION PIN UP/DOWN SYSTEM (OPTION)
  • l. ±âŸ ¿É¼ÇÀ¸·Î MICRO-SCOPE µî °¢Á¾ÆíÀÇÀåÄ¡ ºÎÂøÀ¸·Î ÀÛ¾÷´É·ü °³¼±¿¡ µµ¿òÀÌ °¡´ÉÇÕ´Ï´Ù.

4. General specification of AMX - 1242T

  • a. SCREEN FRAME DIMENSION
    320 X 320 mm
  • b. WORK TABLE SIZE
    220 X 220 mm
  • c. PRINTING AREA
    120 X 120mm(max)
  • d. SQUEEGE

    • TYPE
      DIAMOND TYPE
    • STROKE
      10 ~ 180 mm (programmable)
    • DRIVING
      Stepping motor
    • SPEED
      20 ~ 200 mm / sec (programmable)
    • PRESSURE
      2 ~ 6 Kg (adjustable)
  • e. SCREEN FRAME LOCK SYSTEM
    ONE-TOUCH (4 POINT CLIPPING by AIR CYLINDER)
  • f. SCREEN FRAME POSITION ADJUST
    MICROMETER (X, Y +/- 5mm, Q 5)
  • g. SNAP - OFF CONTROL
    SEMI-AUTO SCREEN SNAP-OFF (by AC MOTOR, 0 ~ 5mm)
  • h. TOUCH SCREEN PANEL
    OPERATION
  • i. SYSTEM CONTROL
    PLC
  • j. DOUBLE PRINTING
    1 ~ 10 ȸ (Progammable)
    • k. POWER SOURCE
      220VAC , 700 WATT
    • VACUUM
      SELF SUPPLY by VENTURI
    • AIR REQUIRED
      5.5 kg / sq.cm
    • MACHINE DIMENSION
      520(W) X 1000(D) X 1100(H)
      (Standard)
Note :
À§ÀÇ »ç¾çÀº ÁÖ¹®¿¡ µû¶ó º¯°æµÉ ¼ö ÀÖ½À´Ï´Ù.
À§ÀÇ »ç¾çÀº Á¦Ç°ÀÇ Ç°Áú Çâ»óÀ» À§ÇÏ¿© ¿¹°í¾øÀÌ º¯°æµÉ ¼ö ÀÖ½À´Ï´Ù.
