Screen Printer

MANUAL VISION SCREEN PRINTER

MODEL AMX-5050MV

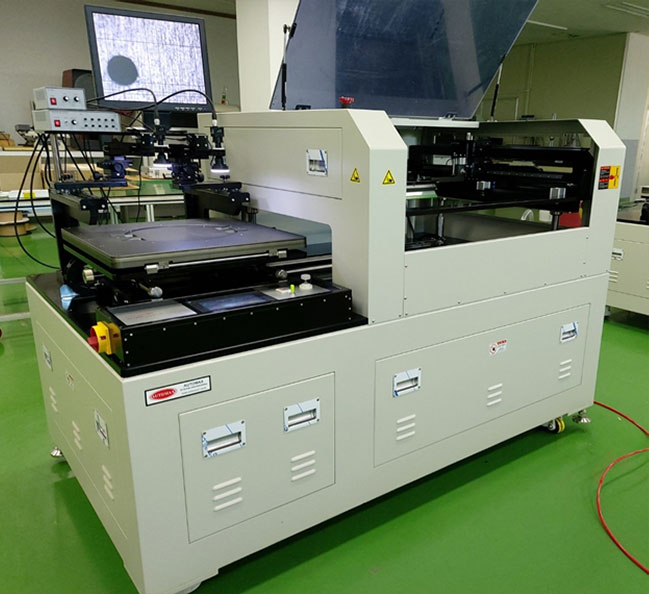

AMX-5050MV


AUTOMAX SYSTEM ENGINEERING

* À§ »çÁøÀÇ À̹ÌÁö´Â º¯°æµÉ¼ö ÀÖÀ¸¸ç ¿ÀÅä¾ó¶óÀÌ³Ê ÀåÂøµÈ ¸ðµ¨ÀÔ´Ï´Ù.

  • TEL : 032-671-1513
  • FAX : 032-671-1514

1. Ç°¸í

MANUAL VISION ALIGN SCREEN PRINTER
MODEL No. AMX-5050MV (NEW)

2. ¿ëµµ

SILVER PASTE³ª TIO2 PASTEµîÀ» FTO GLASS ¿¡ µµÆ÷½ÃÄÑ ÁÖ´Â Àåºñ·Î½á LTCC, MLCC, RF FILTER, SOLAR CELLµîÀ» Á¦Á¶ÇÒ¼ö ÀÖ½À´Ï´Ù. ¶ÇÇÑ, º» ¼³ºñ´Â Paste¸¦ ½ÃÆ® À§¿¡ µµÆ÷ÈÄ Àμ⸦ ÁøÇàÇÏ¿© ViaȦ¿¡ Paste¸¦ ÃæÁø ½Ãų¼öÀÖ´Â Àåºñ ÀÔ´Ï´Ù.

3. Ư¡

  • a. DATA ¼öÄ¡È­¿¡ ÀÇÇÑ °íÁ¤¹Ð Àμ⠽ÇÇö
    (¼¶¼¼ÇÑ ¼³°è, Á¤¹ÐÇÑ °¡°ø, µÎ³ú¸¦ °®´Â SOFTWARE ¿¡ ÀÇÇÑ °íÁ¤¹Ð Àμâ½ÇÇö)
  • b. DOUBLE - PRINTING ±â´É
  • c. TOUCH SCREEN PANEL
  • d. SQUEEGE SPEED ÀÇ Çâ»ó¼º
    (À¯¾Ð ¹× °ø¾Ð¹æ½ÄÀÌ °®´Â SPEED º¯È­ÀÇ ¹®Á¦Á¡À» SERVO MOTOR DRIVING ¹æ½ÄÀ» äÅÃÇÔÀ¸·Î½á Àμ⠵β²ÀÇ ±ÕÀϼºÀ» °¡Áü) ¶ÇÇÑ, SERVO MOTOR ¸¦ »ç¿ëÇÔÀ¸·Î½á ½ºÄûÁö ¼¾ÅÍ Æ÷ÀÎÆ®¸¦ °¡º¯ÇÒ¼ö À־ ¿øÇÏ´Â À§Ä¡¿¡ ½ºÄûÁö Æ÷ÀÎÆ®¸¦ °¡Áú¼ö ÀÖ½À´Ï´Ù.
  • e. SQUEEGEE Àμ⠹æ½ÄÀº Àú¾ÐÀμ⠹æ½ÄÀ» Àû¿ëÇÏ¿´½À´Ï´Ù.
  • f. ½±°í °£´ÜÇϸç, ½Å¼ÓÇÑ OPERATION
    (ÀÏüÀÇ °ø±¸°¡ ÇÊ¿äÄ¡ ¾ÊÀº Áß¾ÓÁýÁᫎ ÀüÀÚÁ¦¾î¹æ½Ä äÅÃ)
  • g. AIR CYLINDER ¿¡ ÀÇÇÑ ONE-TOUCH ¹æ½ÄÀ¸·Î SCREEN FRAME ÀåÂø¹× Å»ÂøÀ» ÇÕ´Ï´Ù. ÇÁ·¹ÀÓ Å¬·¥ÇÎ Æ÷ÀÎÆ®¸¦ 6±ºµ¥·Î Àâ¾Æ¼­ ¾ÈÁ¤°¨ÀÖ°Ô Å¬·¥ÇÎÀ» Çϵµ·Ï º¸°­ ÇÏ¿´½À´Ï´Ù.
  • h. SNAP - OFF (SCREEN GAP) Á¶Á¤Àº SERVO MOTOR DRIVING ¹æ½ÄÀ» äÅÃÇÏ¿©, TOUCH ÀÇ UP - DOWN À¸·Î Á¶ÀýÇÕ´Ï´Ù. SNAP-OFF Á¶Á¤À» SERVO MOTOR¸¦ »ç¿ëÇÔÀ¸·Î½á ¹Ì¼¼ ½º³À Á¶Àýµµ °¡´ÉÇÕ´Ï´Ù.
  • i. COMPACTÇÑ DESIGN ¹× Àú¼ÒÀ½ ¼³°è¿¡ ÀÇÇÑ ÀÛ¾÷ȯ°æÀÇ °³¼±
  • j. MANUAL VISION ALIGN SYSTEM
    ¡Ø ±âÁ¸ÀÇ ¸Å´º¾ó ŸÀÔÀÇ ¾ó¶óÀÌ³Ê ¹æ½ÄÀÌ »ç¿ëÀÚÀÇ Á÷°¨À̳ª °¨°¢¿¡ µû¶ó¼­ Â÷ÀÌ°¡ ³¯¼ö ÀÖ´Â ¾ó¶óÀÎ ºÎºÐÀ» ¼öµ¿ ºñÀü ½Ã½ºÅÛÀÇ ¸ð´ÏÅÍ¿¡¼­ È®ÀÎÇÏ¿© Ç×»ó µ¿ÀÏÇÑ À§Ä¡¿¡ ÇÁ¸°Æà Á¤¹Ðµµ¸¦ À¯ÁöÇÒ¼öÀÖ¾î Àμâ Ç°ÁúÀÇ ±ÕÀϼºÀ» °¡Áö´Â°ÔÇÏ´Â ÀåÄ¡ÀÌ´Ù.
  • k. POROUS PLATE (OPTION)
  • l. LOCATION PIN UP (OPTION)

4. General specification of AMX - 5050MV

  • a. SCREEN FRAME DIMENSION
    500 X 500 mm
  • b. WORK TABLE SIZE
    350 X 350 mm
  • b-1. WORK TABLE
    TILTING ±â´É (½ÃÆ® ¹× Àμâ¸é ºÐ¸® ±â´É Ãß°¡)
  • c. PRINTING AREA
    250 X 250mm(max)
  • d. PRINTING METHOD
    FRONT / BACK MODE
  • d. PRINTING ACCURACY
    +/-10um
  • e. SQUEEGE

    • TYPE
      BAR TYPE (MICROTEK, °æµµ 70µµ)
    • STROKE
      10 ~ 450 mm (programmable)
    • DRIVING
      Servo motor
    • SPEED
      20 ~ 200 mm / sec (programmable)
    • PRESSURE
      4 ~ 6 Kg (adjustable)
    • CENTER POINT
      Adjustable (printing position start : end)
    • ANGLE
      Adjustable (45¡Æ~90¡Æ)
  • f. SCREEN FRAME LOCK SYSTEM
    ONE-TOUCH
    (4 POINT CLIPPING by AIR CYLINDER)
  • g. WORK PLATE POSITION ADJUST
    MANUAL CONTROL
    ( X, Y +/- 25mm, Q 5 )
  • h. SNAP - OFF CONTROL
    AUTO SCREEN SNAP-OFF ( by SERVO MOTOR, 0 ~ 20 mm )
  • i. TOUCH SCREEN PANEL
  • j. DOUBLE PRINTING
    1 ~ 10 ȸ (Progammable)
  • k. VISION-ALIGNER SPEC
    x30 CCD-CAMERA 2set

    CAMERA CONTROL :X,Y,Z MANUAL STAGEX2

    LED LIGHT CONTROLLER (CH1,CH2)

    17" TFT LCD MONITOR

    LINE GENARATOR 4CH X2

  • l. POROUS PLATE (OPTION)
  • m. Working Jig (OPTION)
  • n. PIN LOACTION SYSTEM (OPTION)
    • o. POWER SOURCE
      3PH 220VAC , 3KW
    • VACUUM
      SELF SUPPLY by VENTURI
    • AIR REQUIRED
      5.5 kg / sq. 0.5MP/cm2
    • MACHINE DIMENSION
      1100(W) X 1930(D) X 1500(H)
      (Standard)
Note :
À§ÀÇ »ç¾çÀº ÁÖ¹®¿¡ µû¶ó º¯°æµÉ ¼ö ÀÖ½À´Ï´Ù.
À§ÀÇ »ç¾çÀº Á¦Ç°ÀÇ Ç°Áú Çâ»óÀ» À§ÇÏ¿© ¿¹°í¾øÀÌ º¯°æµÉ ¼ö ÀÖ½À´Ï´Ù.
