Vacuum Tube Metallization System
MODEL No. AMX-6060AS

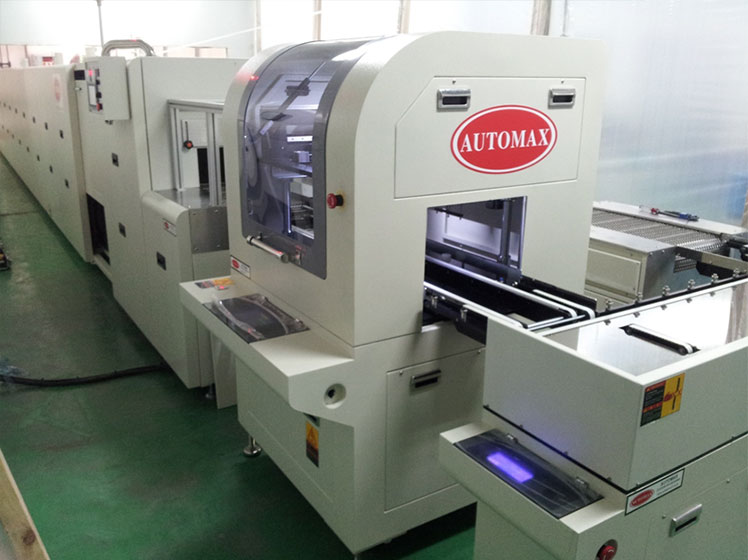

This equipment is a device to put the CERAMIC TUBE on the front, then dry it, then print it on the back and dry it to complete the double-sided printing of the product.
| screen printer size | 1350X 950 X 1650mm |
|---|---|
| Drying furnace size | 10750X 1,280 X 1650mm |
| Cooling Zone size | 8000 X 800 X 1450mm |
| Inspection Zone size | 3,900 X 800 X 1450mm |
| Total Length size | 18720x2142x1800mm |
| Process sequence | Input → Printing → Drying → Cooling → Flipping → Loading → Printing → Drying → Cooling → OUTPUT |
|---|---|
| Equipment capacity |
≥140 mm Print one product at a time Ø100 ~ Ø140mm 2 products at a time ≤ Ø100 can print 4 products at a time |
| Processing Material | Alumina TUBE |
| Material Size | Diameter Ø50 ~ 200mm, Height 50 ~ 200mm |
| WORK TRAY | 350mmX350mmX10T HARD OXIDE PLATING |
| Mask frame | 700X700 size |
|---|---|
| mask pattern | open mesh type (or pattern type possible) |
| screen mesh | mesh#100 ~ 180 |
| Printing height | max . 200mm (excluding work tray) |
| Print Effective Area | max. Within 280 x 280 mm |
| work feeding | tray plate |
| work setting | servo-motor (up/down) |
| clean system | sus squeegee type (clean type when loading) |
| cycle time/th> | 20sec |
| printing sequence | servo-motor (forward/backward) |
| operating control | touch screen panel |
| Conveyor | Roll bearings on the board |
|---|---|
| Heater | ceramic heater 0.7kw x 4zone |
| push system | cylinder |
| Heater control | scr type two stage control pid control |
| Overheating prevention | Overload prevention / Earth leakage prevention circuit configuration |
| Abnormal alarm device | Installing a warning light |
| Maximum temperature | 200 ℃ |
| Insulating device | rock wool 100k * 100t (external temperature 40 ℃ or less) |
| Convective hot air type | 0.5MP |
| Exhaust | 0.5MP |
| Power | 380v / 3p, 68kW |
| Exhaust damper installation | Natural exhaust |
| Cooling Zone | 4 zone installation |
|---|---|
| Cooling fan | 5m³ / min |
| Conveyer | Roll bearings on the board |
|---|---|
| Push system | cylinder |
| Power | 380v / 3p, 70kW |
|---|---|
| Air | 5.5kg / f, 15Øhose |
| Emplacement | Semi-cleaning space with constant temperature and humidity under 0 ~ 40 ℃ |
| Exhaust pipe | Prepare an air duct and dust suction duct on the ceilingand ，air Compressor |
| Warranty period | Free one-year warranty after setup |
|---|---|
| Warranty condition | No warranty for wiring, equipment defects or program bugs during the warranty period. |
| Special note |
1. Even if the warranty period is free, the loss of parts caused by the user's fault shall be dealt with in a fee. 2. In order to improve the performance of the equipment, the user shall be compensated for the change by the request. |
| A/S support system | Simple faults and responses correspond to calls on the wire. If there is any disruption in the urgent production, it will be processed within three days. We will respond to other issues with mutual consultation. |
| Parts list | List of press parts Provided basic toolbox |
|---|---|
| Technical Documents | Circuit diagram, pneumatic circuit diagram, program operation manual, one copy each (Chinese version) |
